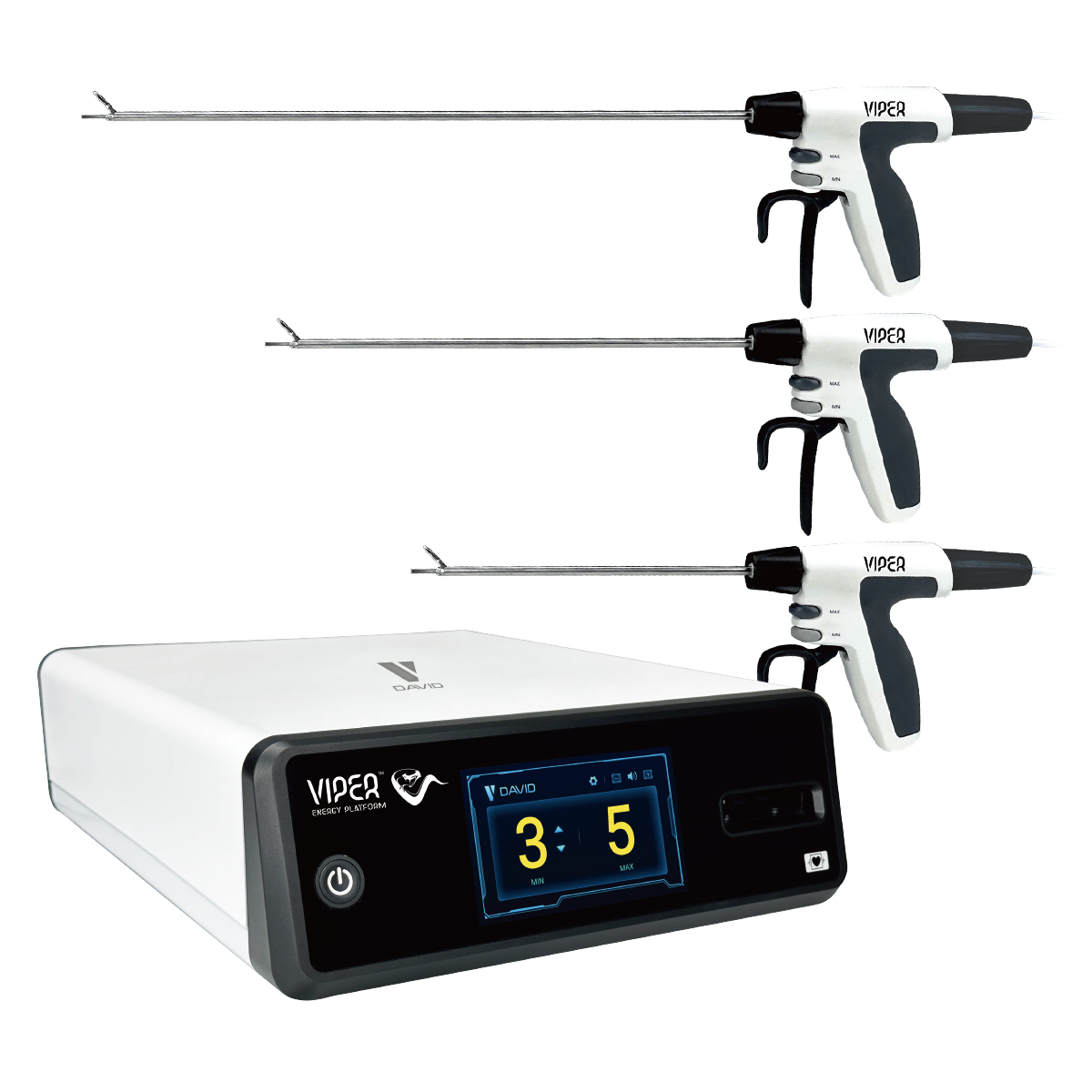

Built for hospital procurement teams, surgical center operators, and medical equipment distributors, this all-in-one system integrates tissue cutting, coagulation, dissection, and grasping functions via advanced ultrasonic technology. Its flagship 7mm vessel sealing capability empowers surgeons to complete procedures with enhanced control and reduced risk, supported by proprietary PLL (Phase-locked Loop) algorithm and IRT (Instant Responding Technique) to ensure stable resonant frequency and maximum vibration amplitude in every case.
This versatile ultrasonic surgical dissection system is optimized for both open and minimally invasive procedures across multiple specialties, including general surgery, thoracic surgery, gynecology, urology, and laparoscopic surgery. It is ideal for operations requiring precise tissue manipulation and reliable hemostasis, from routine soft tissue dissection to complex cases involving large vessel management.
7mm Max Vessel Sealing Capacity: Matches leading global benchmarks, enabling secure sealing of vessels up to 7mm in diameter to reduce intraoperative bleeding and eliminate the need for supplementary hemostatic tools.
Industry-Leading Cutting Speed: Delivers a mean dissection speed of 26.1±5.2s, significantly faster than competing systems, to shorten operative time and reduce patient anesthesia exposure.
Minimized Lateral Thermal Spread: Achieves a mean thermal spread of 1.00±0.42mm, limiting collateral damage to adjacent healthy tissue and supporting faster post-operative recovery.

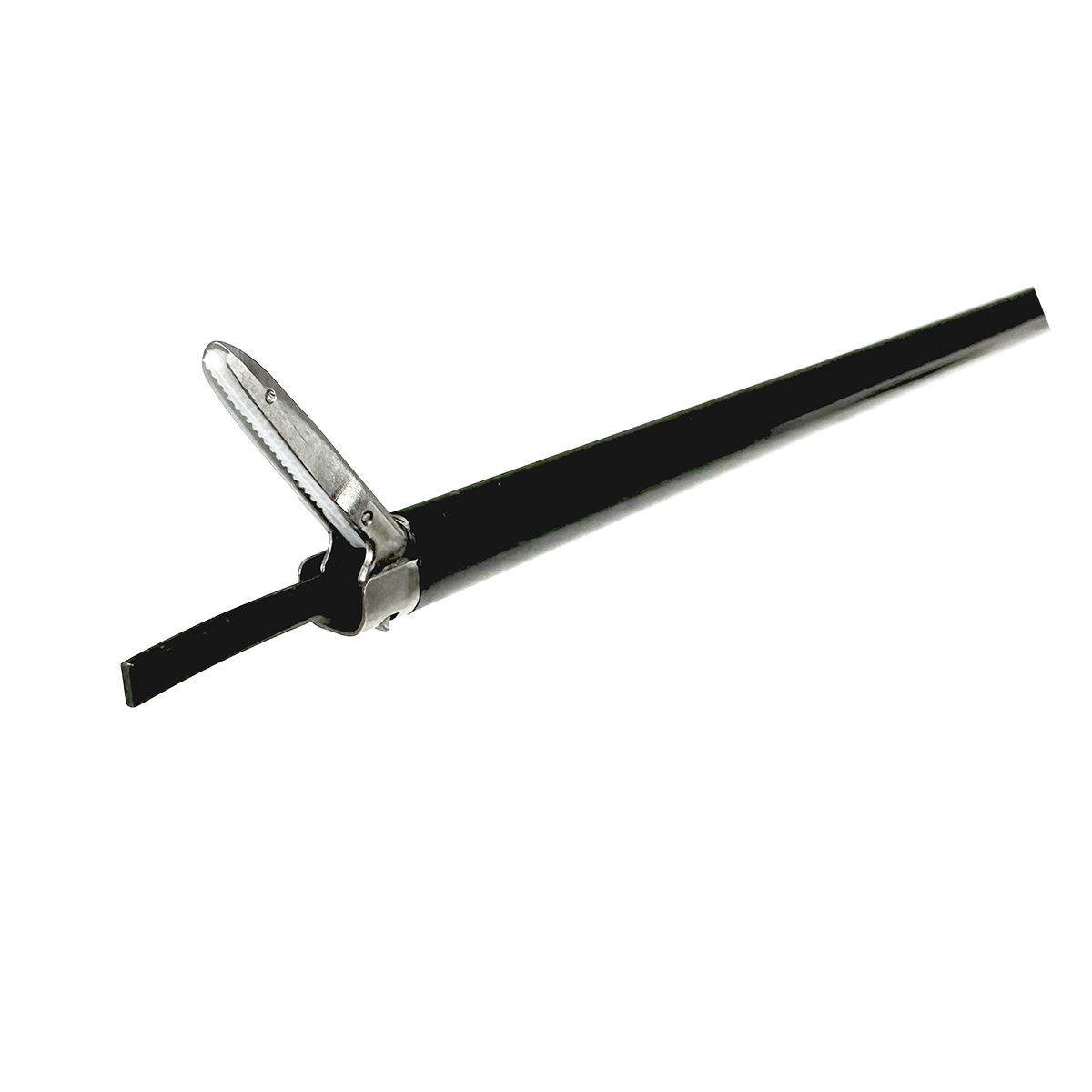

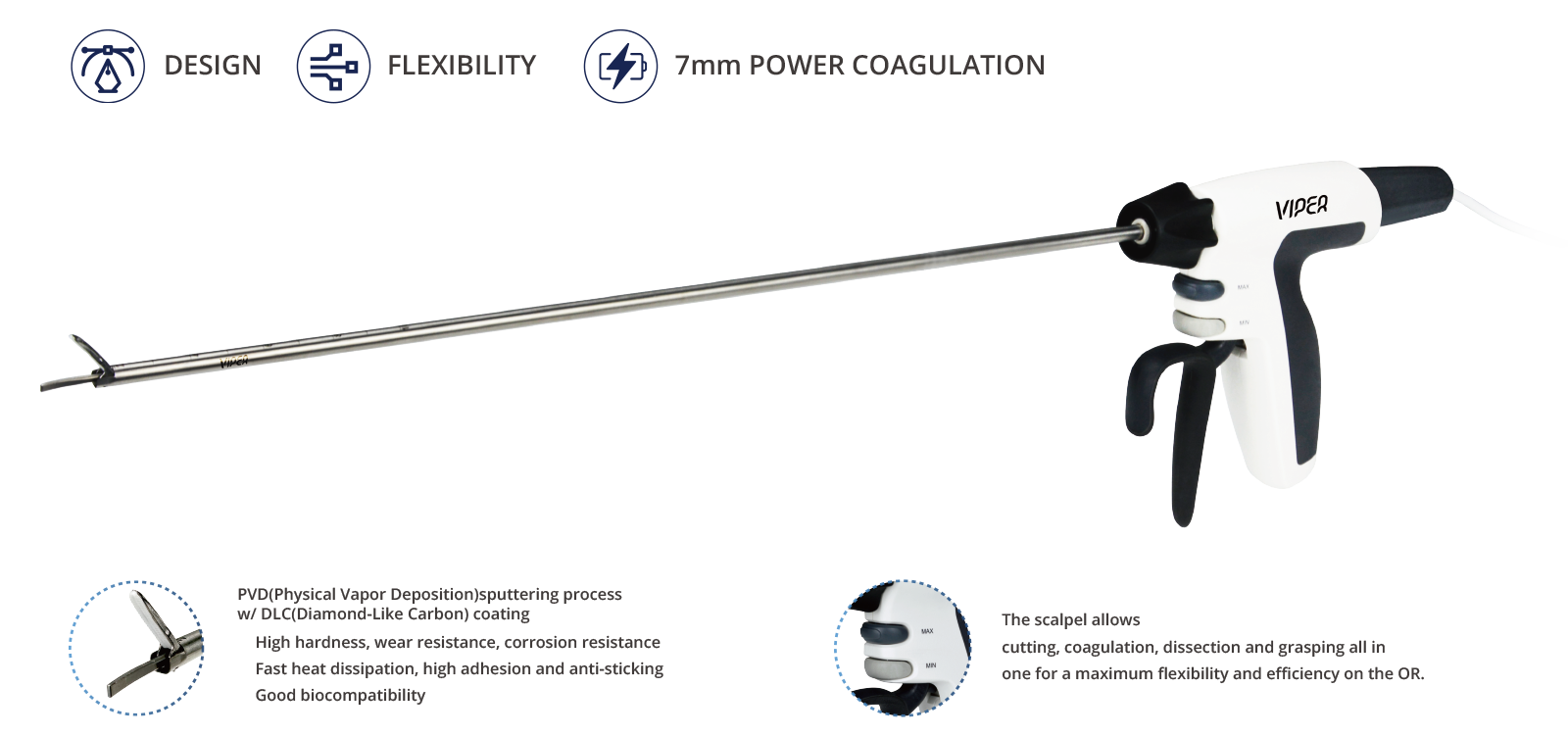

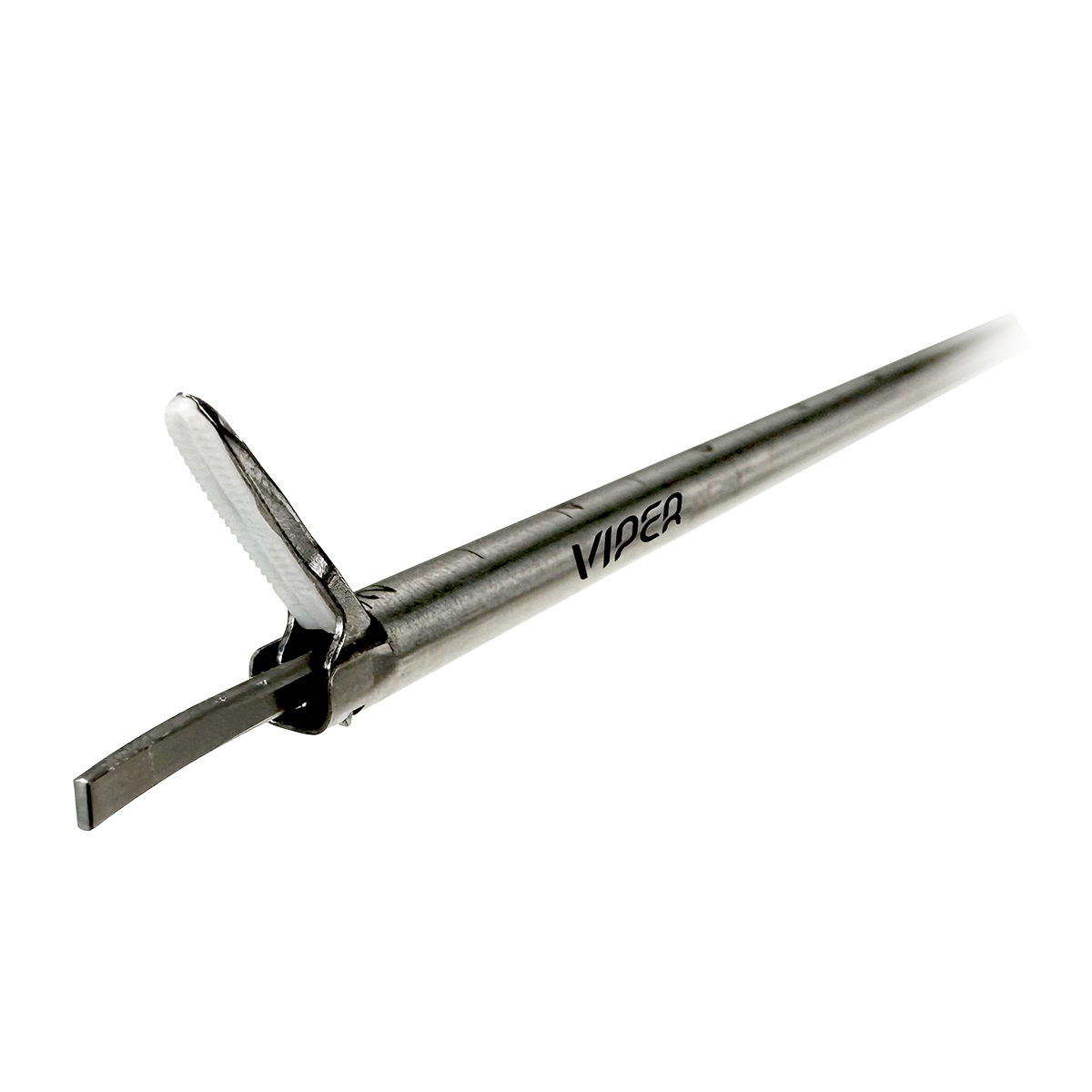

Dedicated DLC Tip Coating: Features a Diamond-Like Carbon coating applied via PVD sputtering, delivering exceptional hardness, wear resistance, anti-sticking performance, and biocompatibility for consistent use in long procedures.
The low thermal spread ultrasonic scalpel reduces post-operative complication risks, while its all-in-one design minimizes instrument exchanges to improve OR efficiency. The reusable transducer also delivers long-term cost savings for healthcare facilities, aligning with both clinical and operational priorities.

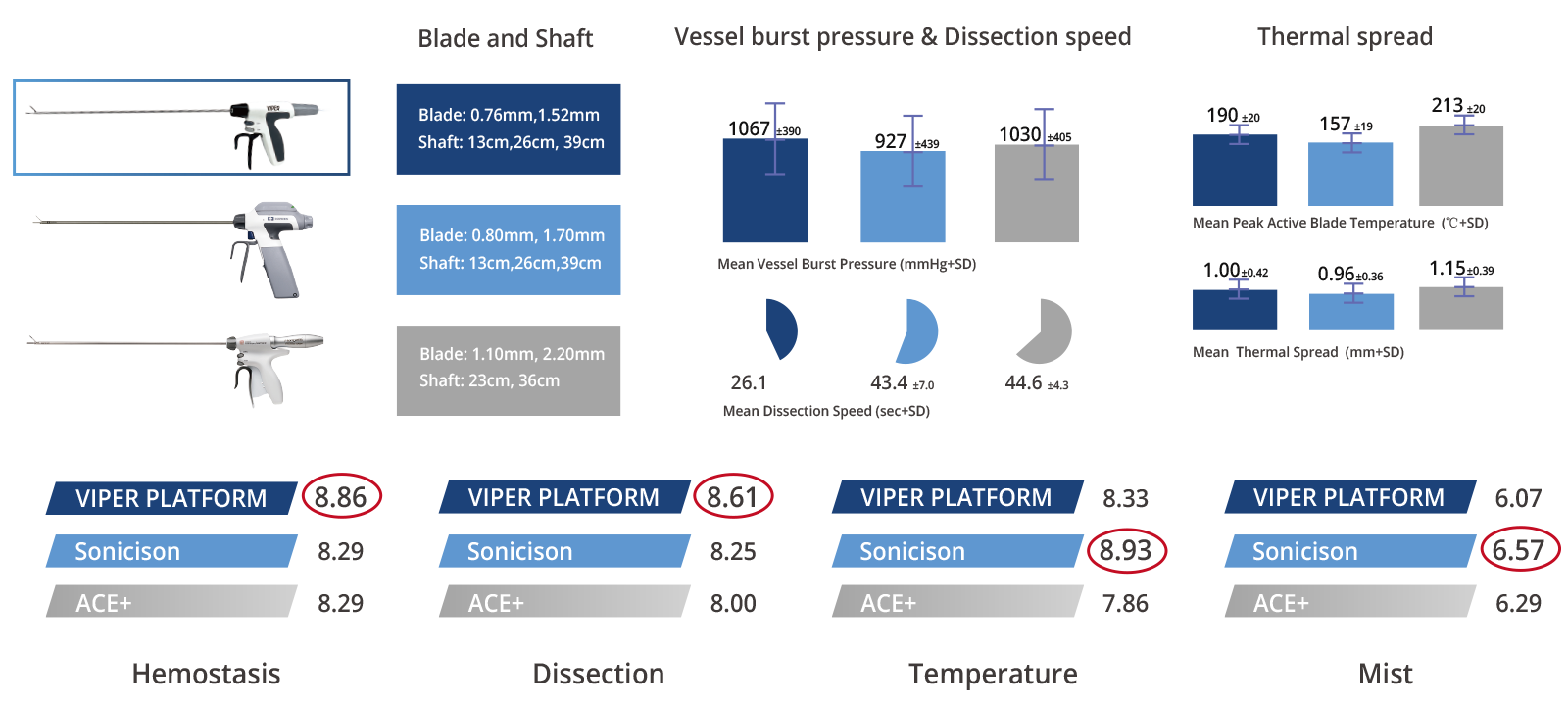

Viper | Harmonic Ace + | Sonicision | ThunderBeat | |
Max.vessel size sealed | 7MM | 7MM | 5 MM | 7 MM |
Tissue cutting speed* | 26.1士5.2S | 43.4 ± 7.0 S | 44.6 ± 4.3S | Unknow |
Lateral thermal spread | 1.00±0.42S | 0.96± 0.36S | 1.15士0.39S | Unknow |
Dedicated coating on tip of the wave guide | Yes | Yes | No | No |
Product code | Description | Shaft length Tolerance +- 5% | Units/Carton |
|---|---|---|---|

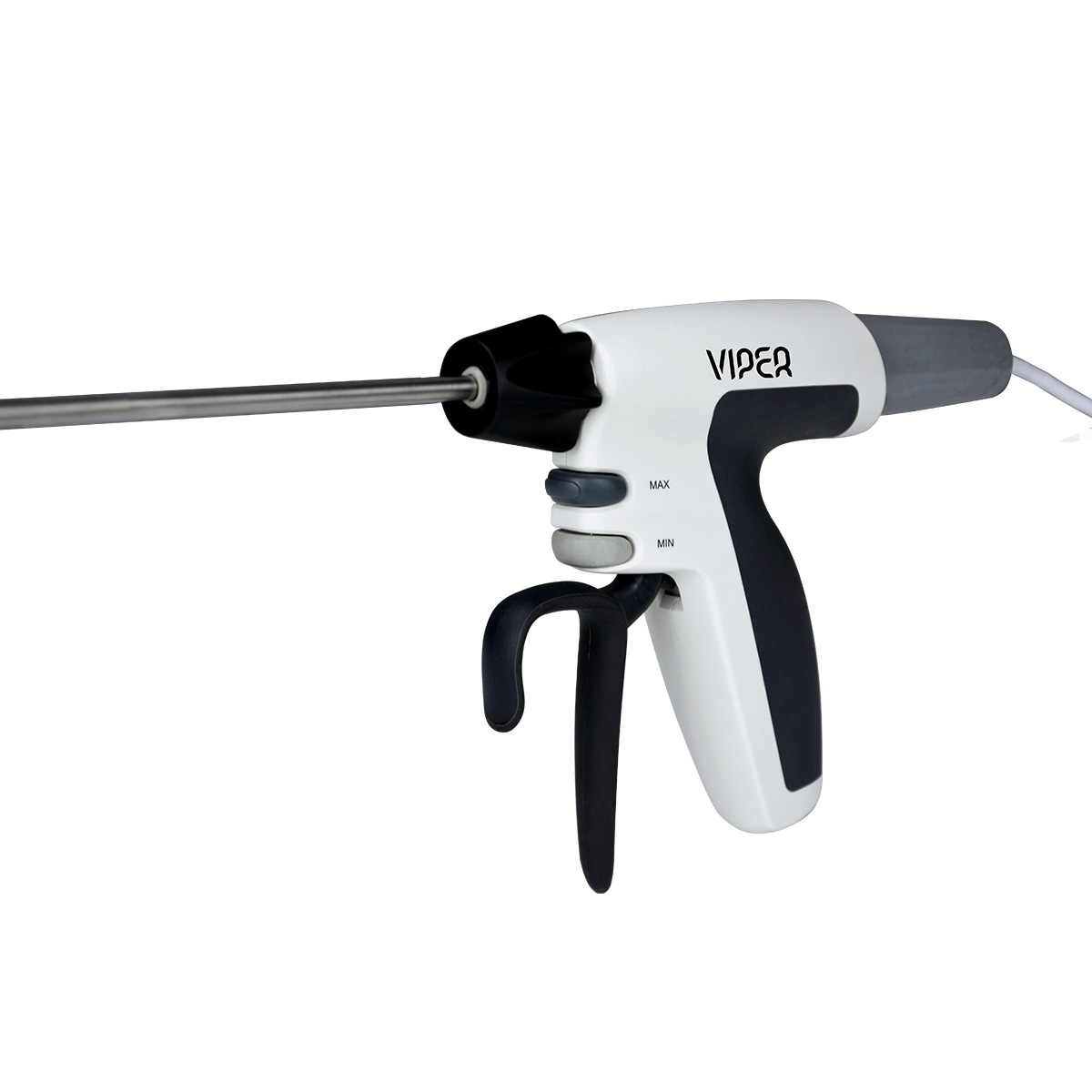

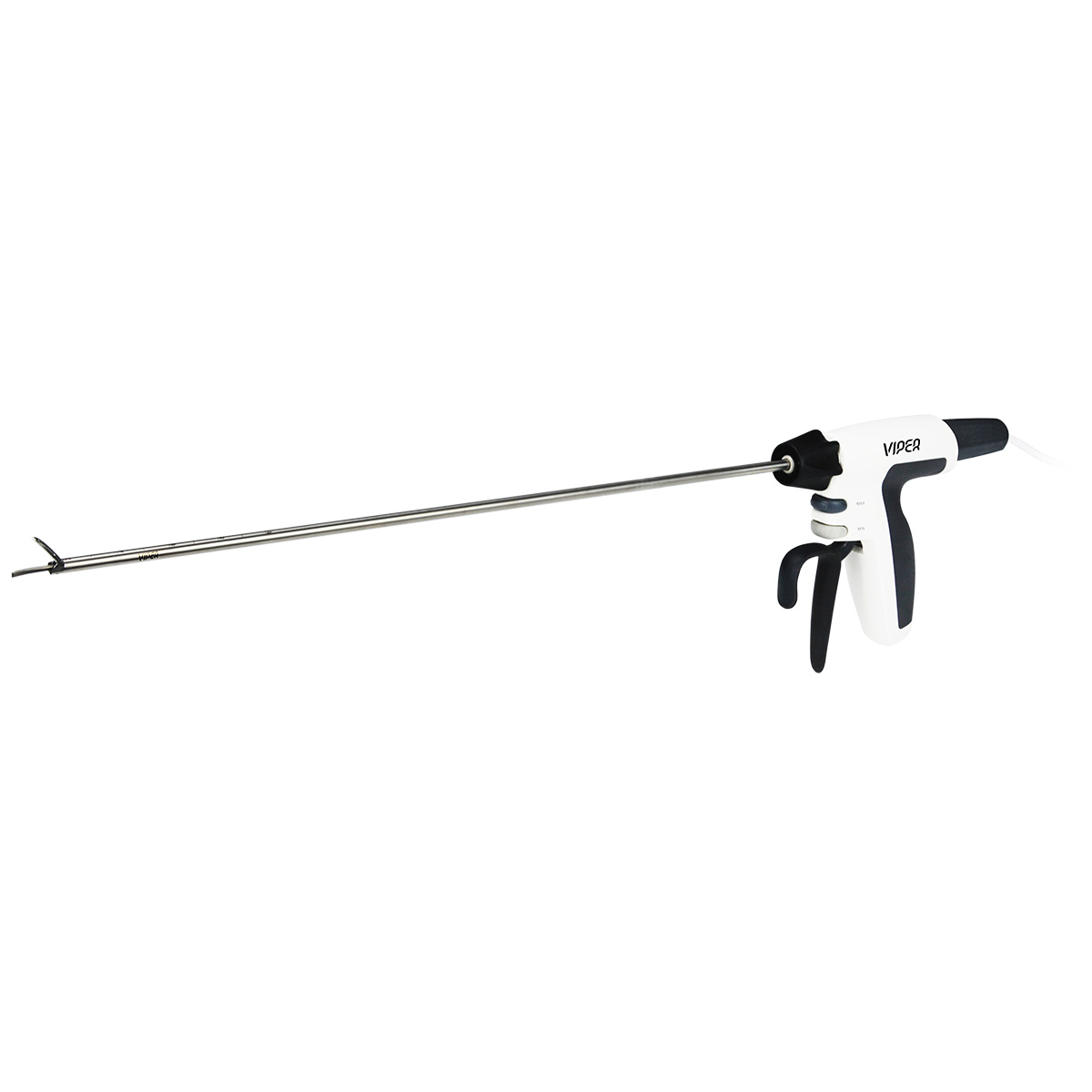

VU-13 | VIPER Soft Tissue Ultrasonic Scalpel 130 mm | 130 mm | 10 |
VU-26 | VIPER Soft Tissue Ultrasonic Scalpel 260 mm | 260mm | 10 |
VU-39 | VIPER Soft Tissue Ultrasonic Scalpel 390 mm | 390 mm | 10 |
Product code | Description | Dimensions | Units/Carton |

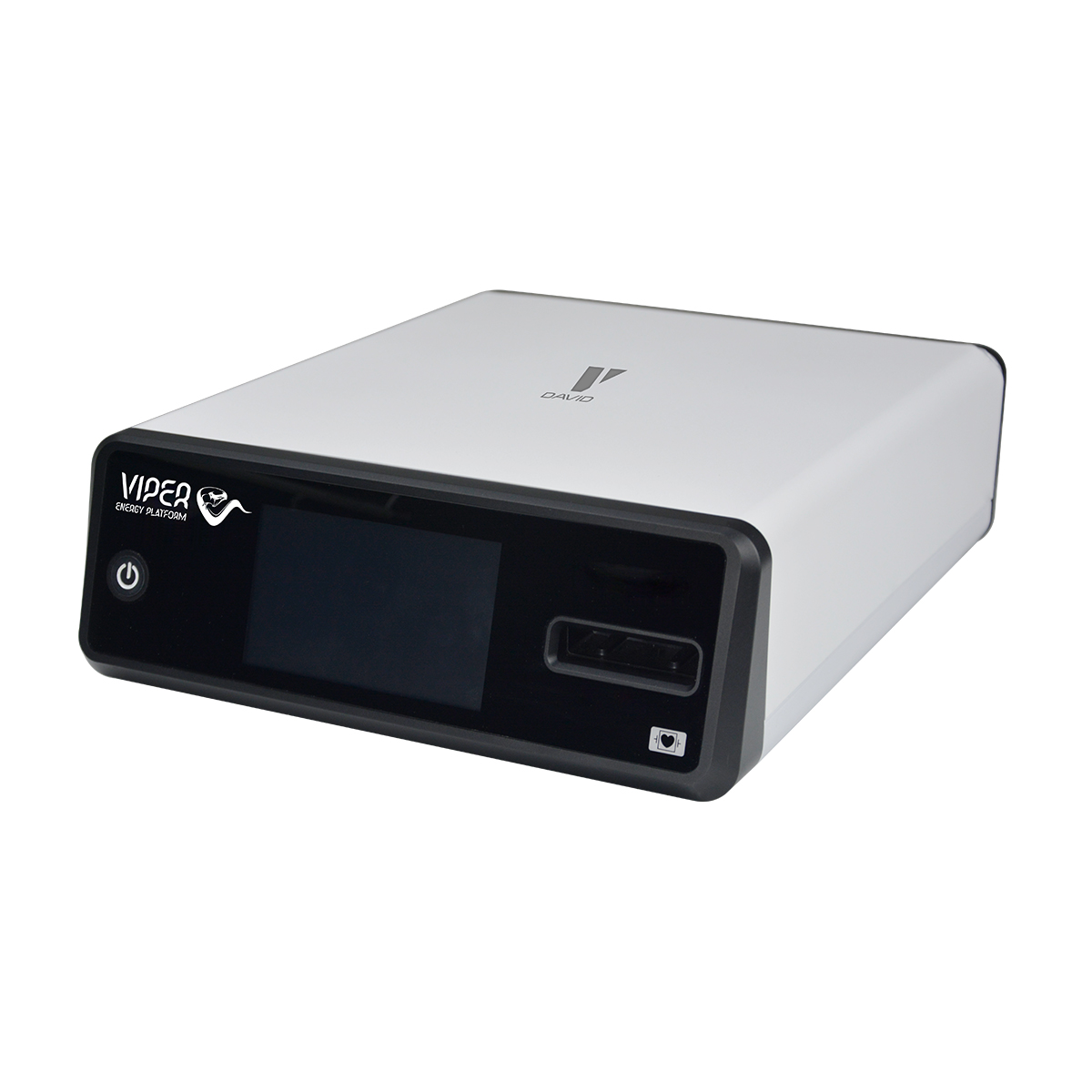

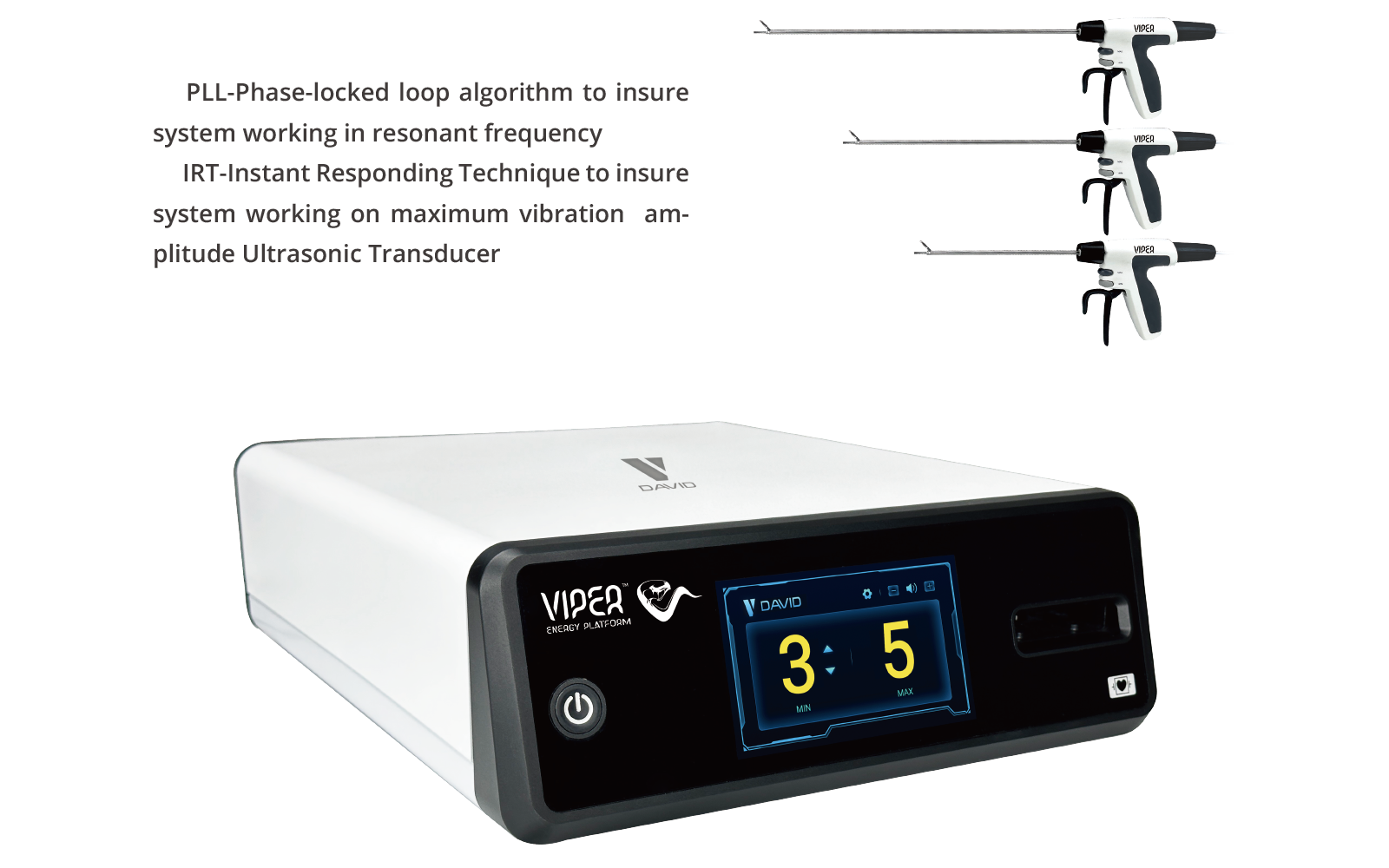

VIPER-I | VIPER Soft Tissue Ultrasonic Dissection System | 380 mm x 300 x 115 | 1 |
Product code | Description | Dimensions | |
VIHP-I | Reusable Transducer of VIPER-I | Cable Length L | Tolerance |
Product code | Description | 270mm | 士10% |
VFS-I | FootSwitch of VIPER-I | ||
The system can safely and securely seal vessels up to 7mm in diameter, matching the performance of top market competitors.
We offer three standard lengths: 130mm, 260mm, and 390mm, to accommodate both open and minimally invasive surgical approaches.
Yes. The waveguide tip features a dedicated Diamond-Like Carbon (DLC) coating, delivering superior wear resistance, anti-sticking performance, and biocompatibility.
Yes. The VIHP-I reusable transducer is designed for repeated clinical use, delivering long-term cost efficiency for healthcare facilities.
